The multifaceted
BA W06

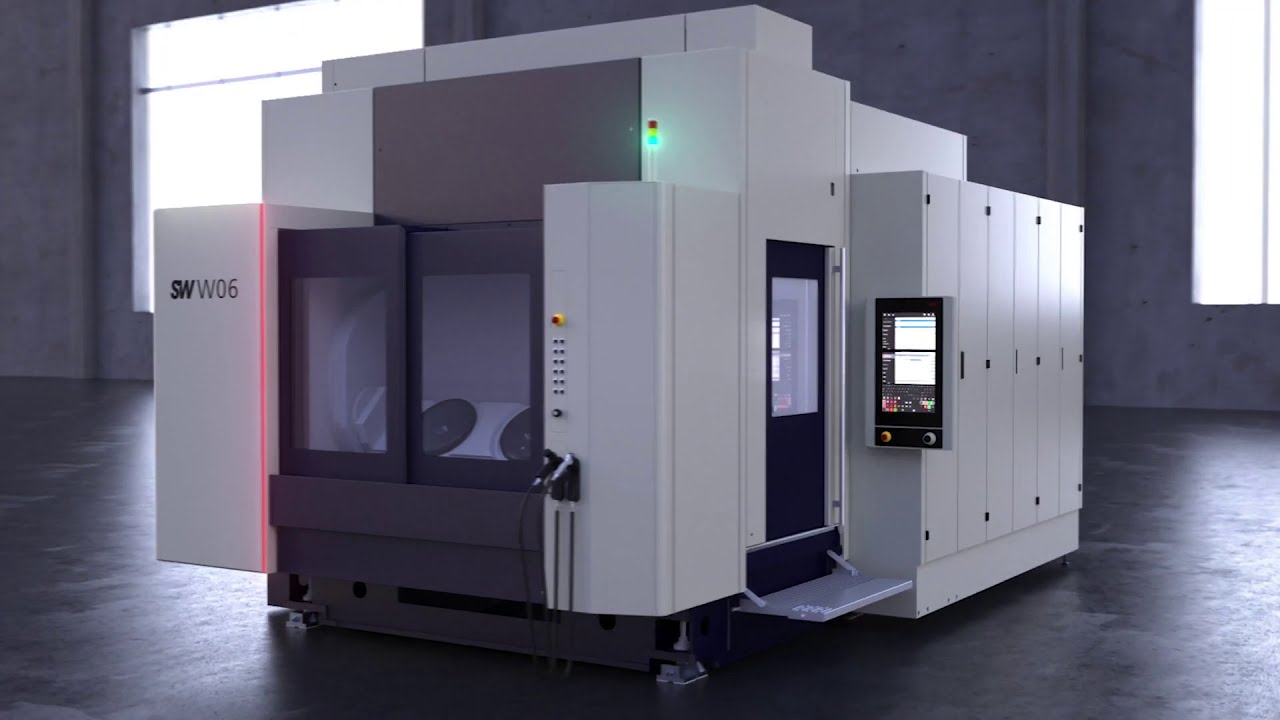

Machining center BA W06
PRODUCTIVITY
PRODUCTIVITY
| Loading/unloading in parallel to machining time
| Maximum productivity through multi-spindle capability
| Highest dynamics due to linear drive technology
| Fastest machining center of its kind
QUALITY
QUALITY
| High machine rigidity due to patented monoblock design
EASE OF USE
EASE OF USE
| Multi-touch control panel
| Tool control system
FLEXIBILITY
FLEXIBILITY
| Flexible automation solutions
| Customizable machine configuration
| Independent Z and X axes
| Single-table and dual-table machines available
ERGONOMICS
ERGONOMICS
| Accessibility to the workspace
| Clear visibility of machining process
ENERGY EFFICIENCY
ENERGY EFFICIENCY
| Highest energy efficiency (50% less energy used per part vs single-spindle)
SERVICE
SERVICE
| Fully integrated data management through life data
WORKPIECES
WORKPIECES
| Stator housing
| Battery tray
| Gearbox housing
| Coupling housing
| Inverter housing
| Wheel carrier
| ABS valve housing
TECHNICAL DATA
| DESCRIPTION | BA W06-11 | BA W06-12 | BA W06-21 | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Spindles | 1 | 2 | |||||||
| Spindle distance | – | 600 mm | |||||||
| Speed range | 1 – 17,500 min-1 | 1 – 12,500 min-1 | 1 – 17,500 min-1 | 1 – 12,500 min-1 | 1 – 17,500 min-1 | 1 – 12,500 min-1 | |||
| Power (per spindle) | 35 kW | 42 kW (10% ED) | 35 kW | 42 kW (10% ED) | 35 kW | 42 kW (10% ED) | |||
| Torque (per spindle) | 80 Nm | 200 Nm (10% ED) | 80 Nm | 200 Nm (10% ED) | 80 Nm | 200 Nm (10% ED) | |||
| HSK interface | HSK-A63 | HSK-A80 | HSK-A100 | HSK-A63 | HSK-A80 | HSK-A100 | HSK-A63 | HSK-A80 | HSK-A100 |
| Workspace X | 1,150 mm | 600 mm | |||||||
| Workspace Y | 630 mm | ||||||||
| Workspace Z | 510 mm | ||||||||
| Interference circuit 4th axis | Ø 1,000 x 1.505 mm | Ø 675 x 1,430 mm | Ø 1,000 x 1,430 mm | ||||||
| DESCRIPTION | BA W06-22 | BA W06-32 | BA W06-42 | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Spindles | 2 | 3 | 4 | ||||||
| Spindle distance | 600 mm | 425 mm | 300 mm | ||||||
| Speed range | 1 – 17,500 min-1 | 1 – 12,500 min-1 | 1 – 17,500 min-1 | ||||||
| Power (per spindle) | 35 kW | 42 kW (10% ED) | 32 kW | ||||||
| Torque (per spindle) | 80 Nm | 200 Nm (10% ED) | 72 Nm | ||||||
| HSK interface | HSK-A63 | HSK-A80 | HSK-A100 | HSK-A63 | |||||
| Workspace X | 600 mm | 425 mm | 300 mm | ||||||
| Workspace Y | 630 mm | 600 mm | |||||||
| Workspace Z | 510 mm | 500 mm | |||||||
| Interference circuit 4th axis | Ø 675 x 1,430 mm | ||||||||
Reference parts
