The manifold
BA W04

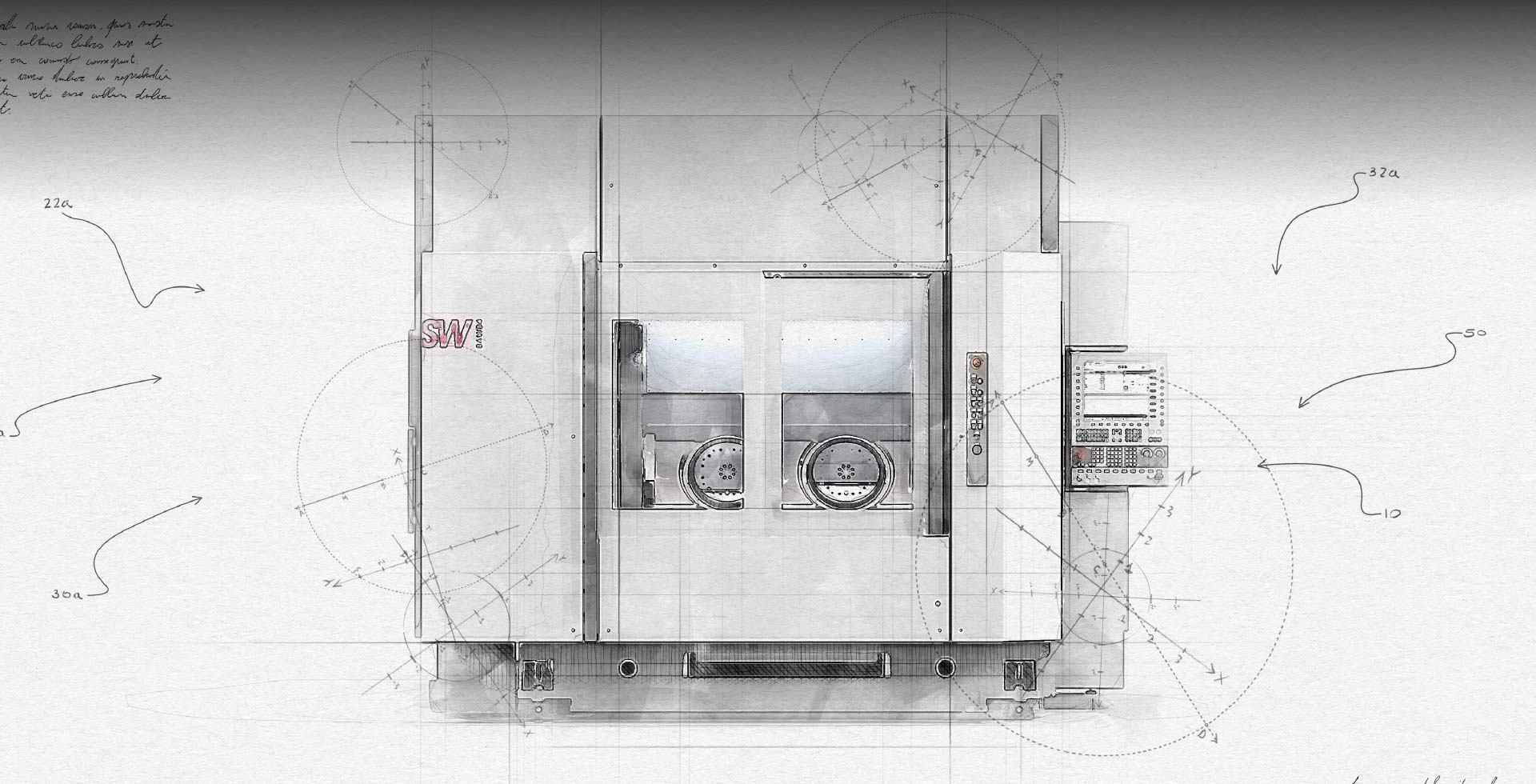

Machining center BA W04
PRODUCTIVITY
PRODUCTIVITY
| Maximum productivity through multi-spindle capability
| Highest dynamics due to linear drive technology
| Largest integrated tool magazine (232 tools)
QUALITY
QUALITY
| High machine rigidity due to monoblock design
USER FRIENDLINESS
USER FRIENDLINESS
| Multi-touch control panel
| Tool control system
FLEXIBILITY
FLEXIBILITY
| Flexible automation solutions
| Customized machine configuration
ERGONOMY
ERGONOMY
| Accessibility to the workspace
| Clear view of the machining process
ENERGY EFFICIENCY
ENERGY EFFICIENCY
| Highest energy efficiency (-50% to single-spindle)
SERVICE
SERVICE
| Fully integrated data management through life data
WORKSHOPS
WORKSHOPS
| ABS valve housing
| Turbocharger (cold side)
| pivot bearing
| Inverter housing
| wheel carrier
OVERVIEW OF THE DATA
| DESCRIPTION | BA W04-22 | BA W04-42 |
|---|---|---|
| Spindles | 2 | 4 |
| Spindle distance | 400 mm | 200 mm |
| Speed range | 1-17,500 min-1 | |
| Power (per spindle) | 35 kW | |
| Torque (per spindle) | 80 Nm | |
| HSK interface | HSK-A63 | |
| Working space X | 400 mm | 200 mm |
| Working space Y | 500 mm | |
| Working space Z | 425 mm | |
| Interference circle 4th axis | Ø 425 x 1,030 mm | |
Bremssattel – Unsere Erfahrung Erhöht Ihre Ausbringung
ABS - Gehäuse: Ausbringung maximieren
Reference parts
