The diligent
BA W03

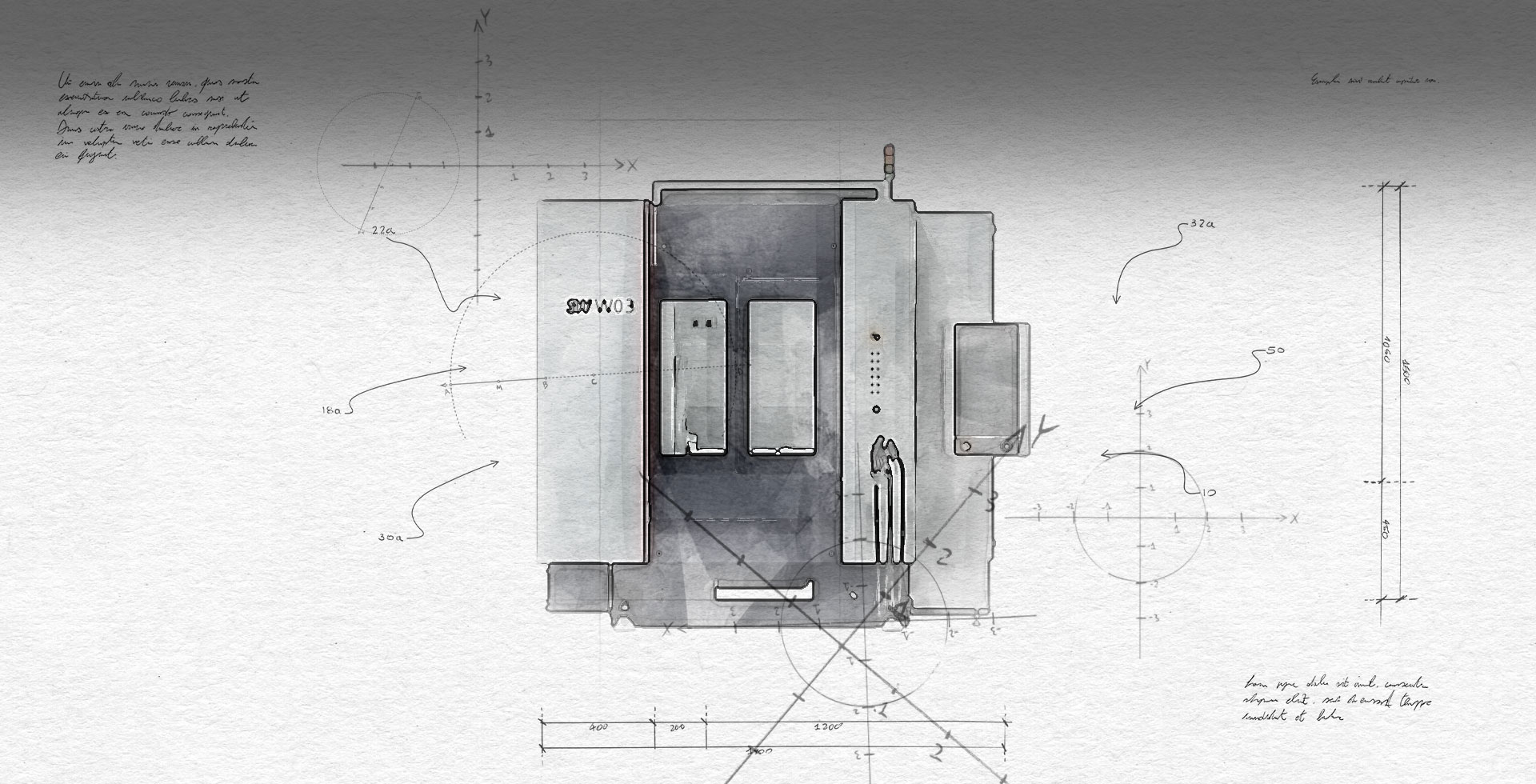

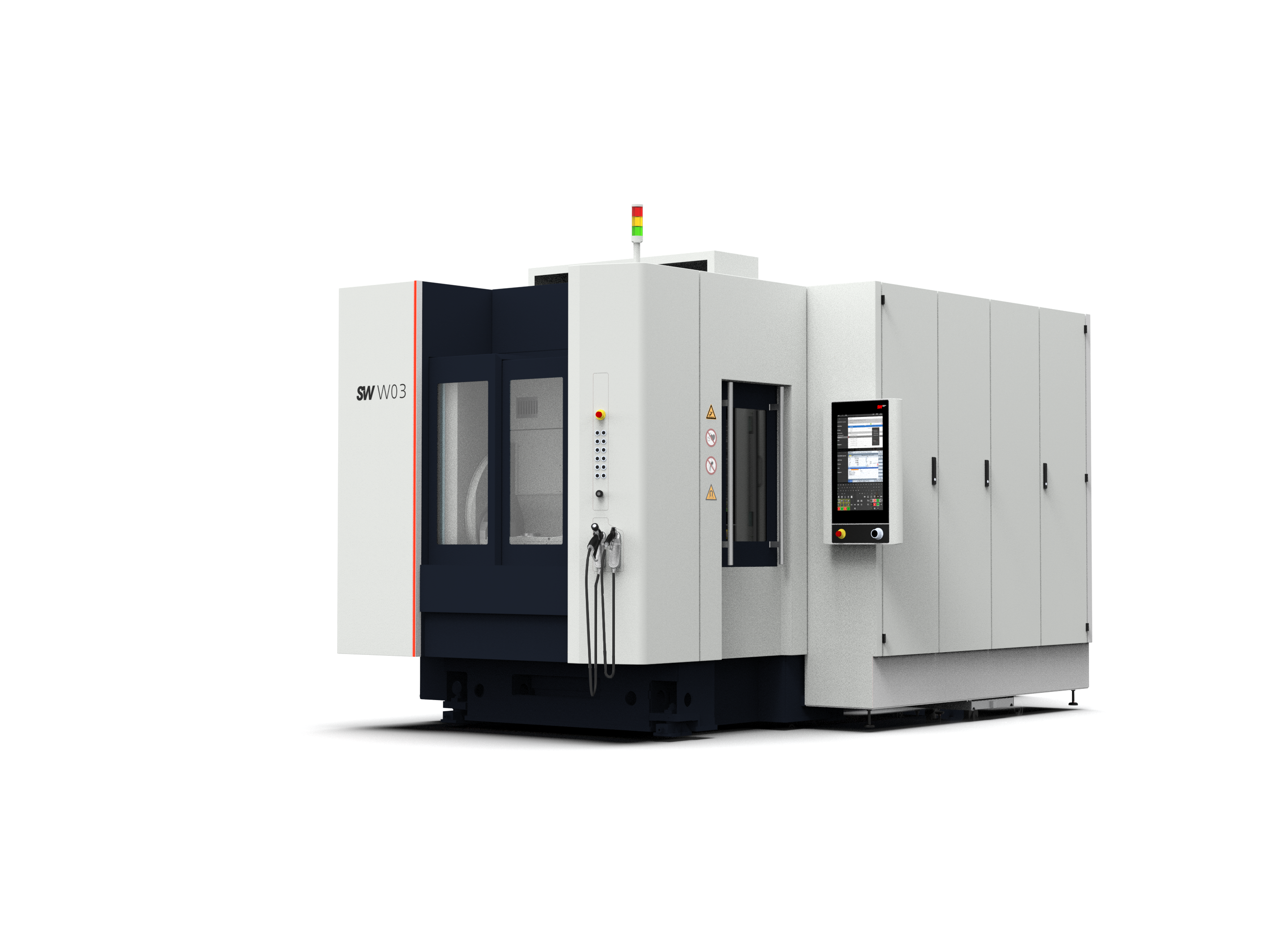

Machining center BA W03
PRODUCTIVITY
PRODUCTIVITY
| Main time parallel loading/unloading
| Maximum productivity through multi-spindle capability
| Highest dynamics due to linear drive technology
QUALITY
QUALITY
| High machine rigidity due to monoblock design
USER FRIENDLINESS
USER FRIENDLINESS
| Multitouch control panel
| Tool control system
FLEXIBILITY
FLEXIBILITY
| Flexible automation solutions
| Customized machine configuration
| Separate Z-axes
ERGONOMY
ERGONOMY
| Accessibility to the workspace
| Clear view of the machining process
ENERGY EFFICIENCY
ENERGY EFFICIENCY
| Highest energy efficiency (-50% to single-spindle)
SERVICE
SERVICE
| Fully integrated data management through life data
WORKSHOPS
WORKSHOPS
| scroll
| Brake cylinder

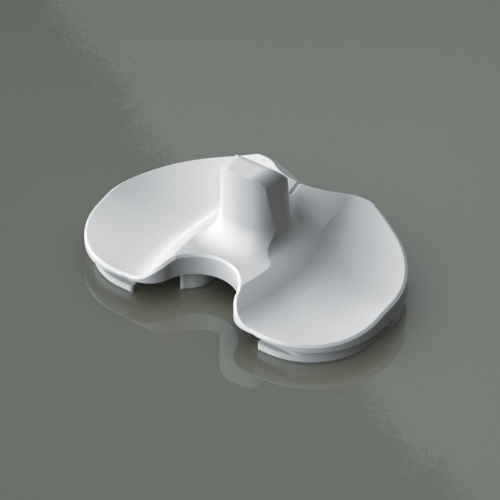

| implants
| valve blocks
| Aluminum housing
OVERVIEW OF THE DATA
| DESCRIPTION | BA W03-22 | ||
|---|---|---|---|
| Spindles | 2 | ||
| Spindle distance | 300 mm (320 mm)* | ||
| Speed range | 1-17,500 min-1 | 1-40,000 min-1 | |
| Power (per spindle) | 35 kW | 18 kW | |
| Torque (per spindle) | 80 Nm | 11.5 Nm | |
| HSK interface | HSK-A63 | HSK-E50* | |
| Working space X | 300 mm (320 mm)* | ||
| Working space Y | 475 mm | ||
| Working space Z | 380 mm | ||
| Interference circle 4th axis | Ø 475 x 830 mm | ||
*optional
Reference parts
